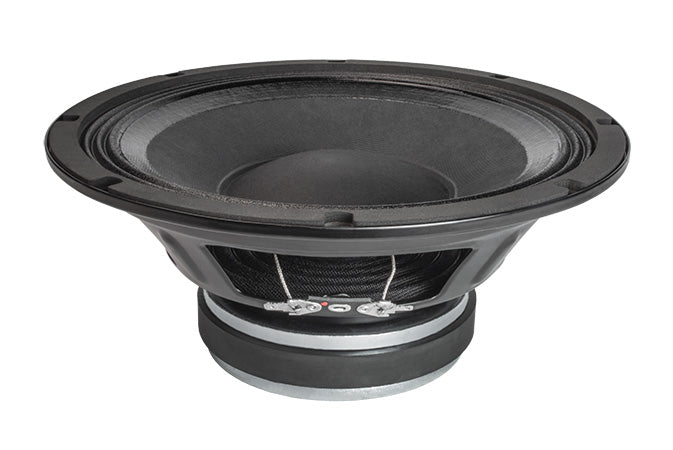

10FE300 - 8Ω

NOMINAL SPECIFICATIONS

Nominal Diameter: 250 mm (10 in)
Overall Diameter: 260 mm (10.24 in)
Bolt Circle Diameter: 246 mm (9.69 in)
Baffle Cutout Diameter: 233 mm (9.17 in)
Depth: 110 mm (4.33 in)
Flange and Gasket Thickness: 7 mm (0.28 in)
Net Weight: 3.2 kg (7.1 lb)
Shipping Box (Single Carton Box): 282 x 280 x 155 mm (11.1 x 11.0 x 6.10 in)
Shipping Weight: 3.7 kg (8.2 lb)


TECHNICAL PARAMETERS

Nominal Impedance: 8 Ohm
Minimum Impedance: 6.8 Ohm
AES Power Handling: 250 W
Maximum Power Handling: 500 W
Sensitivity (1W/1m): 96 dB
Frequency Range: 50÷4000 Hz
Voice Coil Diameter: 52 mm (2.05 in)
Winding Material: Al
Former Material: Glass Fiber
Winding Depth: 13.7 mm (0.54 in)
Magnetic Gap Depth: 8 mm (0.31 in)
Flux Density: 1.1 T
Magnet: Ferrite Ring
Basket Material: Steel
Demodulation: No
Cone Surround: Triple Roll
NET Air Volume filled by Loudspeaker: 1.25 dm^3 (0.044 ft^3)
Spider Profile: 1x variable height waves


THIELE AND SMALL PARAMETERS

Fs: 50 Hz
Re: 5.8 Ohm
Qes: 0.54
Qms: 13.1
Qts: 0.52
Vas: 50.5 dm^3 (1.78 ft^3)
Sd: 358 cm^2 (55.49 in^2)
Xmax: 5.52 mm
Xdamage: 13.1 mm
Mms: 35.9 g
Bl: 11.3 N/A
Le: 0.6 mH
Mmd: 28.2 g
Cms: 0.28 mm/N
Rms: 0.9 kg/s
Eta Zero: 1.20%
EBP: 93 Hz
