General Specifications

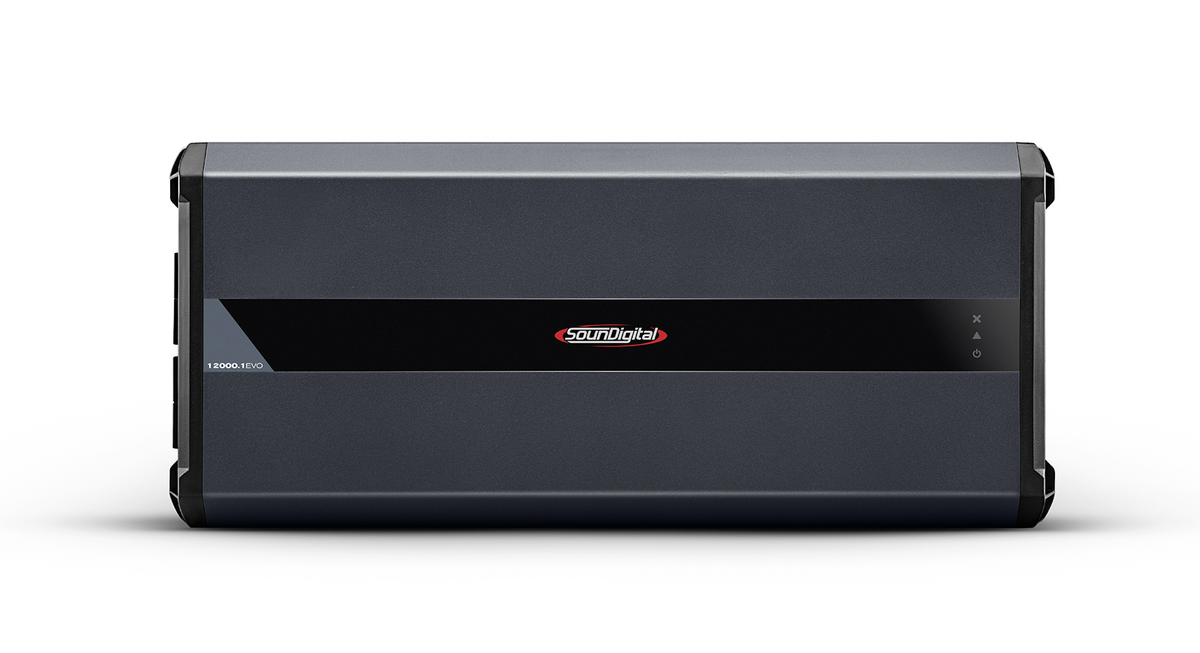

12000.1 EVO 4.0 – 2 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 12000W RMS
Power @ 4Ω: 1 X 7920W RMS
Frequency Response (-3dB): 5Hz ~ 6kHz
High Pass Filter (12dB/octave): 5Hz ~ 80Hz
Low Pass Filter (12dB/octave): 50Hz ~ 6kHz
Bass Boost: 0dB ~ 12dB @ 50Hz
Operating Voltage: 8V ~ 16V
SNR: 71dB
Input Sensitivity (RCA): 200mV ~ 200mV
Input Sensitivity (High Level input): N/A
Current Draw (music): 643A
Current Draw (max.): 1287A
Total Efficiency: 74%
Damping Factor (@100Hz nominal impedance): 200
Power Cable: 95mm² (0000 AWG)
Speaker Cable — 1Ω: 2 x 16mm² (5 AWG); 2Ω: 2 x 10mm² (7 AWG)
Recommended Fuse (Music): 2 X 350A
Recommended Battery (minimum): 650Ah
Width: 8.9" / 22.4 cm
Length: 20.8" / 52.9 cm
Height: 2.8" / 7.1 cm
Weight: 7.3 kg (16.2 lb)
