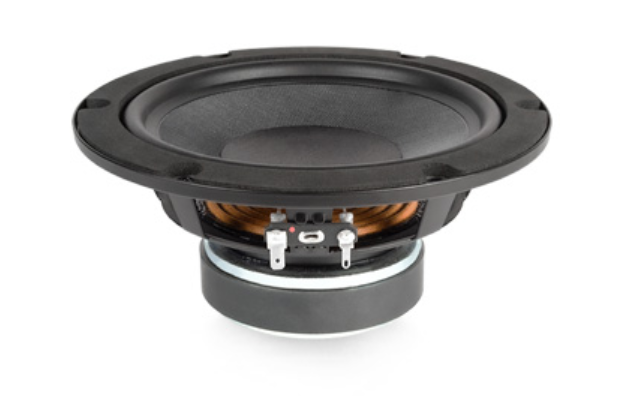

6FE125 - 8Ω

NOMINAL SPECIFICATIONS

Nominal Diameter: 160 mm (6 in)
Overall Diameter: 181.8 mm (7.15 in)
Bolt Circle Diameter: 167 mm (6.57 in)
Baffle Cutout Diameter: 147 mm (5.79 in)
Depth: 84.5 mm (3.33 in)
Flange and Gasket Thickness: 8 mm (0.31 in)
Net Weight: 1.2 kg (2.6 lb)


TECHNICAL PARAMETERS

Nominal Impedance: 8 Ohm
Minimum Impedance: 5.9 Ohm
AES Power Handling: 100 W
Maximum Power Handling: 200 W
Sensitivity (1W/1m): 91 dB
Frequency Range: 63÷5000 Hz
Voice Coil Diameter: 32 mm (1.26 in)
Winding Material: Cu
Former Material: Kapton
Winding Depth: 12.5 mm (0.49 in)
Magnetic Gap Depth: 6 mm (0.24 in)
Flux Density: 1 T
Magnet: Ferrite Ring
Basket Material: Steel
Demodulation: Aluminum Ring
Cone Surround: Half Roll
NET Air Volume filled by Loudspeaker: 0.4 dm^3 (0.014 ft^3)
Spider Profile: 1x constant height waves


THIELE AND SMALL PARAMETERS

Fs: 61 Hz
Re: 5.4 Ohm
Qes: 0.60
Qms: 6.0
Qts: 0.55
Vas: 15.1 dm^3 (0.53 ft^3)
Sd: 149 cm^2 (23.10 in^2)
Xmax: 5.25 mm
Xdamage: 13.15 mm
Mms: 14.0 g
Bl: 6.8 N/A
Le: 0.5 mH
Mmd: 11.9 g
Cms: 0.48 mm/N
Rms: 0.90 kg/s
Eta Zero: 0.53%
EBP: 102 Hz
