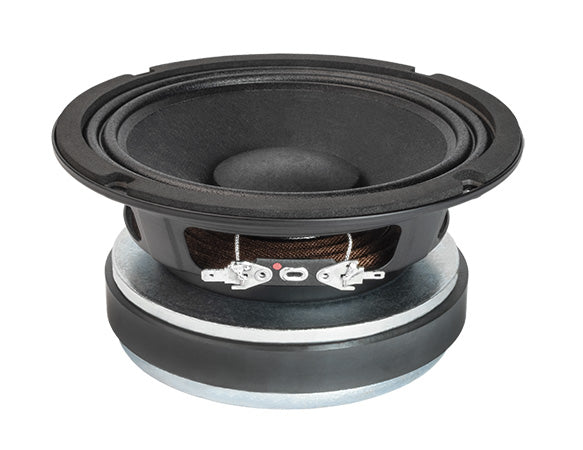

6FE300 - 8Ω

NOMINAL SPECIFICATIONS

Nominal Diameter: 160 mm (6 in)
Overall Diameter: 166.5 mm (6.56 in)
Bolt Circle Diameter: 155 mm (6.10 in)
Baffle Cutout Diameter: 146 mm (5.75 in)
Depth: 81 mm (3.19 in)
Flange and Gasket Thickness: 7 mm (0.28 in)
Net Weight: 2.8 kg (6.2 lb)
Shipping Box (Single Carton Box): 190 x 185 x 103 mm (7.48 x 7.28 x 4.05 in)
Shipping Weight: 3 kg (6.6 lb)


TECHNICAL PARAMETERS

Nominal Impedance: 8 Ohm
Minimum Impedance: 6.5 Ohm
AES Power Handling: 175 W
Maximum Power Handling: 350 W
Sensitivity (1W/1m): 94 dB
Frequency Range: 90÷4000 Hz
Voice Coil Diameter: 52 mm (2.05 in)
Winding Material: Al
Former Material: Glass Fiber
Winding Depth: 9.8 mm (0.39 in)
Magnetic Gap Depth: 6 mm (0.24 in)
Flux Density: 1.15 T
Magnet: Ferrite Ring
Basket Material: Steel
Demodulation: No
Cone Surround: M-Roll
NET Air Volume filled by Loudspeaker: 0.6 dm^3 (0.021 ft^3)
Spider Profile: 1x constant height waves


THIELE AND SMALL PARAMETERS

Fs: 100 Hz
Re: 5.3 Ohm
Qes: 0.48
Qms: 10.5
Qts: 0.46
Vas: 4.7 dm^3 (0.17 ft^3)
Sd: 138 cm^2 (21.39 in^2)
Xmax: 3.90 mm
Xdamage: 13.1 mm
Mms: 14.2 g
Bl: 10 N/A
Le: 0.4 mH
Mmd: 12.4 g
Cms: 0.18 mm/N
Rms: 0.8 kg/s
Eta Zero: 0.97%
EBP: 208 Hz
