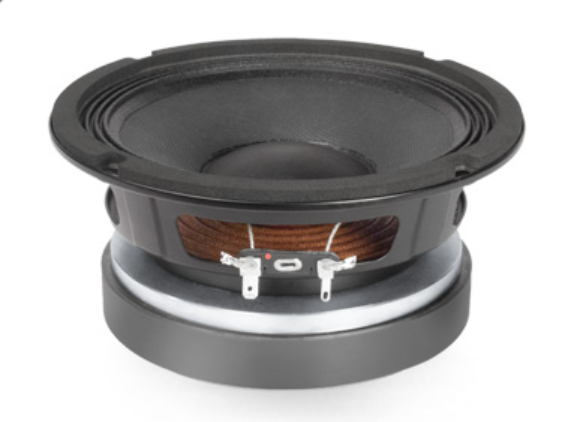

6FE400 - 8Ω

NOMINAL SPECIFICATIONS

Nominal Diameter: 160 mm (6 in)
Overall Diameter: 166.5 mm (6.56 in)
Bolt Circle Diameter: 155 mm (6.10 in)
Baffle Cutout Diameter: 146 mm (5.75 in)
Depth: 84 mm (3.31 in)
Flange and Gasket Thickness: 7 mm (0.28 in)
Net Weight: 2.7 kg (6.0 lb)
Shipping Box (Single Carton Box): 190 x 185 x 103 mm (7.48 x 7.28 x 4.05 in)
Shipping Weight: 2.9 kg (6.4 lb)


TECHNICAL PARAMETERS

Nominal Impedance: 8 Ohm
Minimum Impedance: 6.2 Ohm
AES Power Handling: 200 W
Maximum Power Handling: 400 W
Sensitivity (1W/1m): 94 dB
Frequency Range: 100÷7000 Hz
Voice Coil Diameter: 44 mm (1.73 in)
Winding Material: Al
Former Material: Al
Winding Depth: 12.2 mm (0.48 in)
Magnetic Gap Depth: 8 mm (0.31 in)
Flux Density: 1.10 T
Magnet: Ferrite Ring
Basket Material: Steel
Demodulation: No
Cone Surround: Triple Roll
NET Air Volume filled by Loudspeaker: 0.7 dm^3 (0.025 ft^3)
Spider Profile: 1x constant height waves


THIELE AND SMALL PARAMETERS

Fs: 100 Hz
Re: 5.0 Ohm
Qes: 0.40
Qms: 3.7
Qts: 0.36
Vas: 5.0 dm^3 (0.18 ft^3)
Sd: 141 cm^2 (21.86 in^2)
Xmax: 4.77 mm
Xdamage: 15.5 mm
Mms: 14.0 g
Bl: 10.5 N/A
Le: 0.42 mH
Mmd: 12.1 g
Cms: 0.18 mm/N
Rms: 2.4 kg/s
Eta Zero: 1.22%
EBP: 251 Hz
