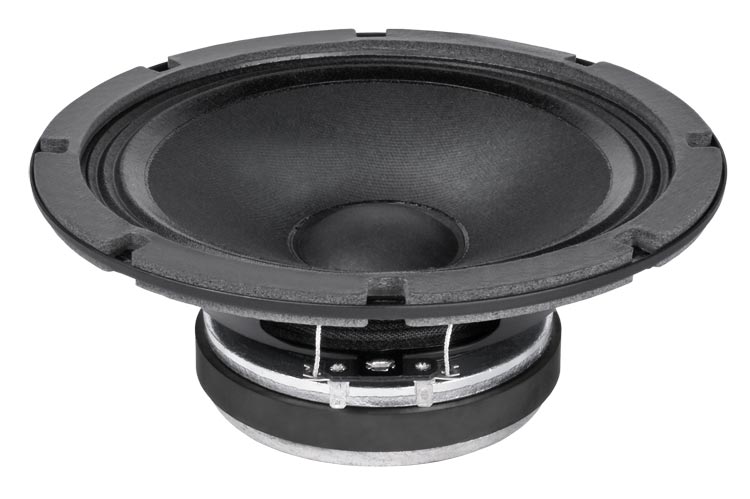

8FE200 - 4Ω

NOMINAL SPECIFICATIONS

Nominal Diameter: 200 mm (8 in)
Overall Diameter: 209.2 mm (8.24 in)
Bolt Circle Diameter: 196.9 mm (7.75 in)
Baffle Cutout Diameter: 178 mm (7.01 in)
Depth: 89 mm (3.50 in)
Flange and Gasket Thickness: 8 mm (0.31 in)
Net Weight: 2.2 kg (4.7 lb)
Shipping Box (Single Carton Box): 227 x 224 x 113 mm (8.9 x 8.8 x 4.4 in)
Shipping Weight: 3 kg (6.6 lb)


TECHNICAL PARAMETERS

Nominal Impedance: 4 Ohm
Minimum Impedance: 3.6 Ohm
AES Power Handling: 130 W
Maximum Power Handling: 260 W
Sensitivity (1W/1m): 95 dB
Frequency Range: 60÷5000 Hz
Voice Coil Diameter: 37 mm (1.46 in)
Winding Material: Al
Former Material: Kapton
Winding Depth: 11.9 mm (0.47 in)
Magnetic Gap Depth: 8 mm (0.31 in)
Flux Density: 1 T
Magnet: Ferrite Ring
Basket Material: Steel
Demodulation: No
Cone Surround: Triple Roll
NET Air Volume filled by Loudspeaker: 0.6 dm^3 (0.021 ft^3)
Spider Profile: 1x constant height waves


THIELE AND SMALL PARAMETERS

Fs: 80 Hz
Re: 3 Ohm
Qes: 0.47
Qms: 8.7
Qts: 0.45
Vas: 15.8 dm^3 (0.56 ft^3)
Sd: 209 cm^2 (32.44 in^2)
Xmax: 4.62 mm
Xdamage: 10.4 mm
Mms: 15.3 g
Bl: 7 N/A
Le: 0.25 mH
Mmd: 11.9 g
Cms: 0.26 mm/N
Rms: 0.9 kg/s
Eta Zero: 1.67%
EBP: 170 Hz
