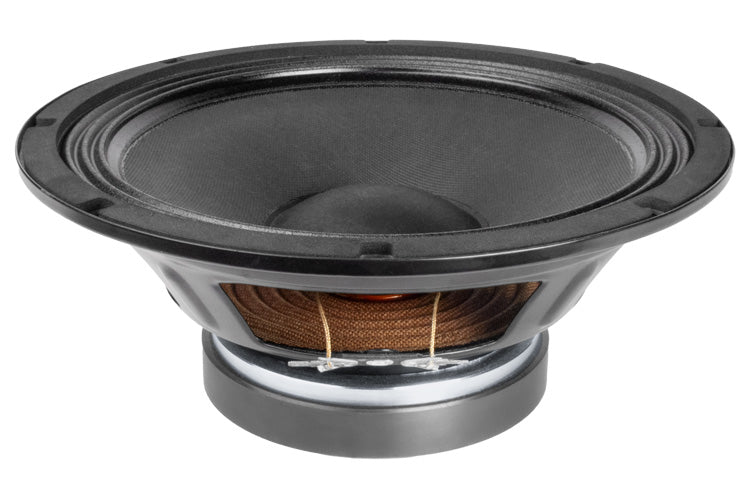

10FE400 - 8Ω

NOMINAL SPECIFICATIONS

Nominal Diameter: 250 mm (10 in)
Overall Diameter: 260 mm (10.24 in)
Bolt Circle Diameter: 246 mm (9.69 in)
Baffle Cutout Diameter: 233 mm (9.17 in)
Depth: 111 mm (4.37 in)
Flange and Gasket Thickness: 7 mm (0.28 in)
Net Weight: 2.95 kg (6.5 lb)
Shipping Box (Single Carton Box): 285 x 285 x 165 mm (11.2 x 11.2 x 6.49 in)
Shipping Weight: 3.5 kg (7.7 lb)


TECHNICAL PARAMETERS

Nominal Impedance: 8 Ohm
Minimum Impedance: 6 Ohm
AES Power Handling: 200 W
Maximum Power Handling: 400 W
Sensitivity (1W/1m): 96 dB
Frequency Range: 60÷4500 Hz
Voice Coil Diameter: 44 mm (1.73 in)
Winding Material: Cu
Former Material: Al
Winding Depth: 13.5 mm (0.53 in)
Magnetic Gap Depth: 8 mm (0.31 in)
Flux Density: 1.10 T
Magnet: Ferrite Ring
Basket Material: Steel
Demodulation: No
Cone Surround: Triple Roll
NET Air Volume filled by Loudspeaker: 1.25 dm^3 (0.044 ft^3)
Spider Profile: 1x constant height waves


THIELE AND SMALL PARAMETERS

Fs: 60 Hz
Re: 5 Ohm
Qes: 0.52
Qms: 5.2
Qts: 0.47
Vas: 35.3 dm^3 (1.25 ft^3)
Sd: 362 cm^2 (56.11 in^2)
Xmax: 5.42 mm
Xdamage: 14.9 mm
Mms: 36.5 g
Bl: 11.5 N/A
Le: 0.68 mH
Mmd: 28.7 g
Cms: 0.19 mm/N
Rms: 2.7 kg/s
Eta Zero: 1.42%
EBP: 115 Hz
