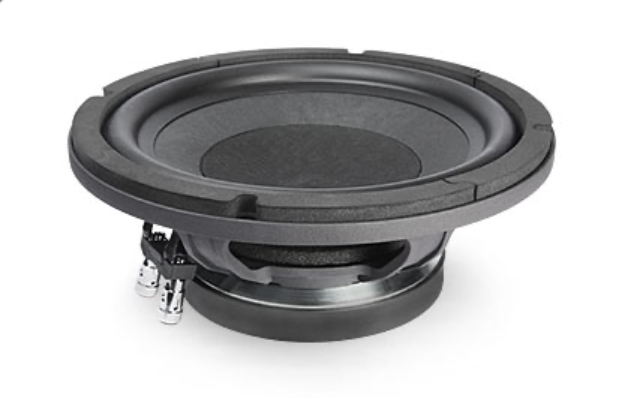

10RS350 - 4Ω

NOMINAL SPECIFICATIONS

Nominal Diameter: 250 mm (10 in)
Overall Diameter: 261 mm (10.28 in)
Bolt Circle Diameter: 246 mm (9.69 in)
Baffle Cutout Diameter: 230 mm (9.06 in)
Depth: 116.5 mm (4.59 in)
Flange and Gasket Thickness: 17.1 mm (0.67 in)
Net Weight: 4.2 kg (9.3 lb)
Shipping Box (Single Carton Box): 282 x 280 x 140 mm (11.0 x 11.0 x 5.5 in)
Shipping Weight: 4.8 kg (10.6 lb)


TECHNICAL PARAMETERS

Nominal Impedance: 4 Ohm
Minimum Impedance: 3.8 Ohm
AES Power Handling: 300 W
Maximum Power Handling: 600 W
Sensitivity (1W/1m): 91 dB
Frequency Range: 40÷2500 Hz
Voice Coil Diameter: 65 mm (2.56 in)
Winding Material: Al
Former Material: Glass Fiber
Winding Depth: 17 mm (0.67 in)
Magnetic Gap Depth: 8 mm (0.31 in)
Flux Density: 1.2 T
Magnet: Ferrite Ring
Basket Material: Aluminum
Demodulation: No
Cone Surround: Half Roll
NET Air Volume filled by Loudspeaker: 1.4 dm^3 (0.049 ft^3)
Spider Profile: 1x variable height waves


THIELE AND SMALL PARAMETERS

Fs: 40 Hz
Re: 3.2 Ohm
Qes: 0.33
Qms: 6.2
Qts: 0.31
Vas: 40.6 dm^3 (1.43 ft^3)
Sd: 344 cm^2 (53.32 in^2)
Xmax: 7.17 mm
Xdamage: 18.15 mm
Mms: 64.5 g
Bl: 12.5 N/A
Le: 0.45 mH
Mmd: 57.3 g
Cms: 0.25 mm/N
Rms: 2.6 kg/s
Eta Zero: 0.76%
EBP: 121 Hz
