1200.1 EVO6 - 2Ω
1200.1 EVO6 - 2Ω

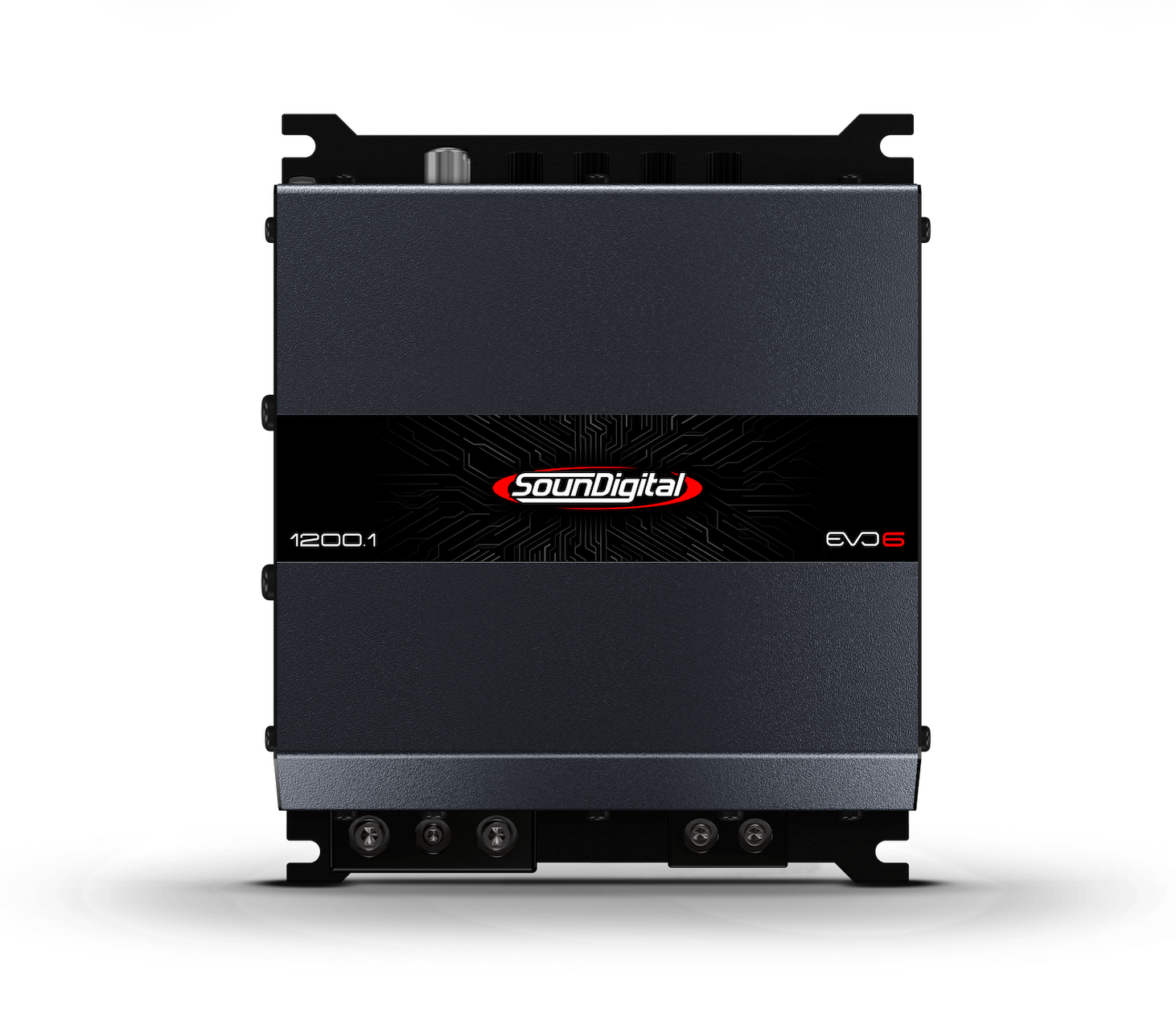

The 1200.1 EVO6 is a compact, modern amplifier that delivers 1200W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Product Specifications
Product Specifications
1200.1 EVO6 – 2Ω
Power @ 4Ω: 1 x 800 W RMS
Power @ 2Ω: 1 x 1200 W RMS
Power @ 1Ω: N/A
Operating Voltage: 10V – 16V
Current Draw (Music): 54 A
Current Draw (Max): 108 A
Recommended Fuse (Music): 60 A
Frequency Response (-3dB): 5Hz – 20kHz
SNR: 4Ω: 93.5dB | 2Ω: 93.2dB | 1Ω: 93.7dB
Crossover HPF: 5Hz – 80Hz
Crossover LPF: 80Hz – 20kHz
Input Sensitivity (RCA): 200mV
Recommended Battery: 60Ah
Power Cable: 10mm² (7AWG)
Speaker Cable: 2.5mm² (13AWG)
Width: 5.07" / 12.9 cm
Length: 5.80" / 14.7 cm
Height: 2.38" / 6.6 cm
Weight: 2.64 lb
