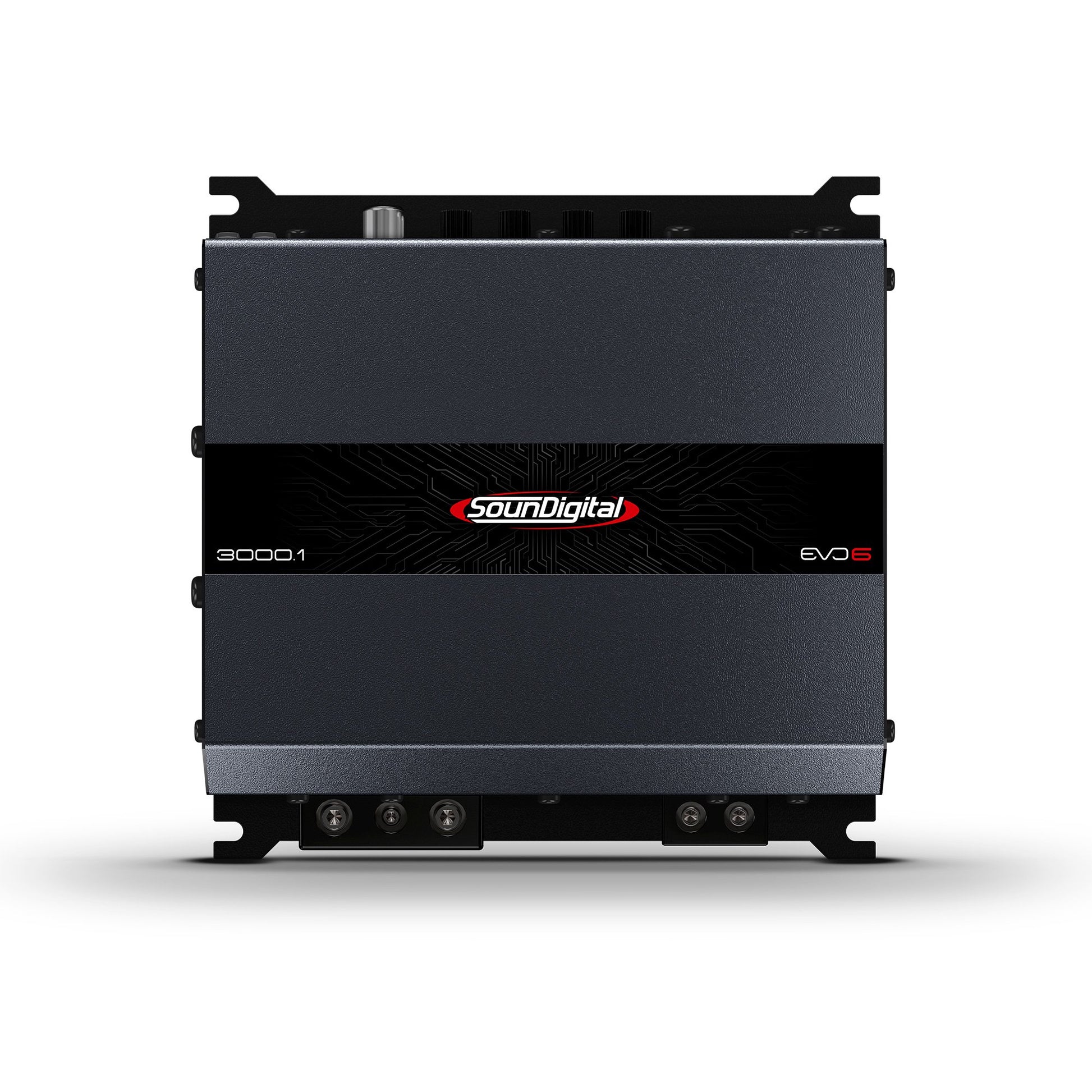

3000.1 EVO6 – 1Ω
Power @ 4Ω: 1 x 1300 W RMS
Power @ 2Ω: 1 x 1900 W RMS
Power @ 1Ω: 1 x 3000 W RMS
Operating Voltage: 10V – 16V
Current Draw (Music): 140 A
Current Draw (Max): 280 A
Recommended Fuse (Music): 150 A
Frequency Response (-3dB): 5Hz – 20kHz
SNR: >90dB
Crossover HPF: 5Hz – 80Hz
Crossover LPF: 80Hz – 20kHz
Input Sensitivity (RCA): 200mV
Recommended Battery: 150Ah
Power Cable: 35mm² (2AWG)
Speaker Cable: 6mm² (9AWG)
Width: 5.92" / 15.5 cm
Length: 5.80" / 14.7 cm
Height: 2.38" / 6.6 cm
Weight: 1.47 kg / 3.24 lb
