400.2 EVO6 - 4Ω
400.2 EVO6 - 4Ω

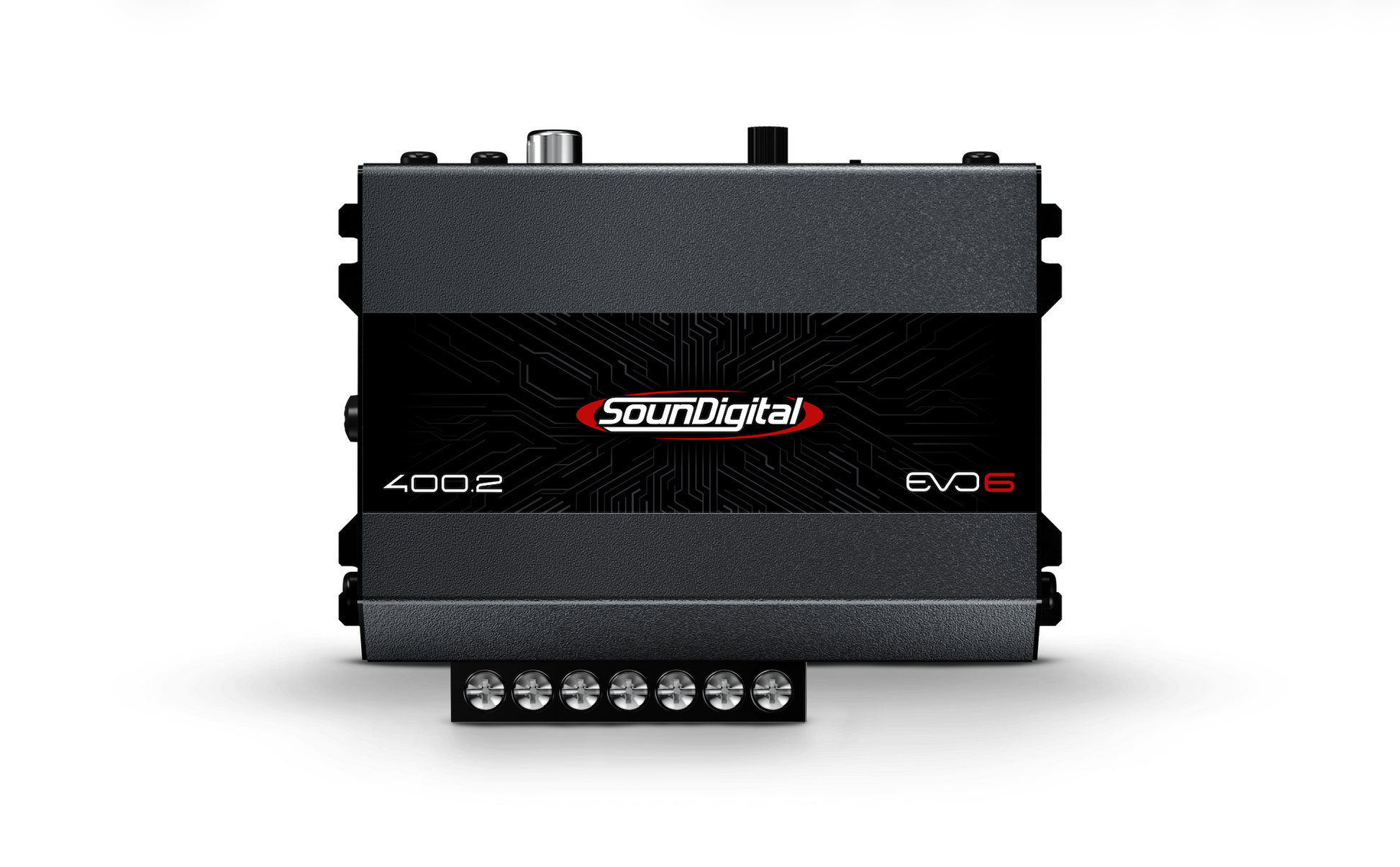

The 400.2 EVO6 is a compact, modern amplifier that delivers 400W RMS of power over 2 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Product Specifications
Product Specifications
400.2 EVO6 – 4Ω
Power @ 4Ω: 2 x 132W
Power @ 2Ω: 2 x 200W
Bridge Power @ 4Ω: 1 x 400W
Bridge Power @ 2Ω: N/A
Frequency Response (-3dB): 5Hz ~ 30kHz
Low Pass filter (12dB/octave): 80Hz
High Pass filter (12dB/octave): 80Hz
Operating Voltage: 9V ~ 16V
SNR: >100dB
Input Sensitivity (RCA): 0.2V ~ 2V
Input Sensitivity (High Level input): 2.5 ~ 25V
Current Draw (music): 20A
Current Draw (max.): 40A
Power Cable: 6mm² (9 AWG)
Speaker Cable: 1.5mm² (15 AWG)
Remote cable: 1.5mm² (15 AWG)
Recommended Fuse* (music): 25A
Recommended Battery (minimum): 40Ah
Width: 4.2"
Length: 3.4"
Height: 1.8"
Weight: 0.906 lb
