400.4 EVO6 - 4Ω
400.4 EVO6 - 4Ω

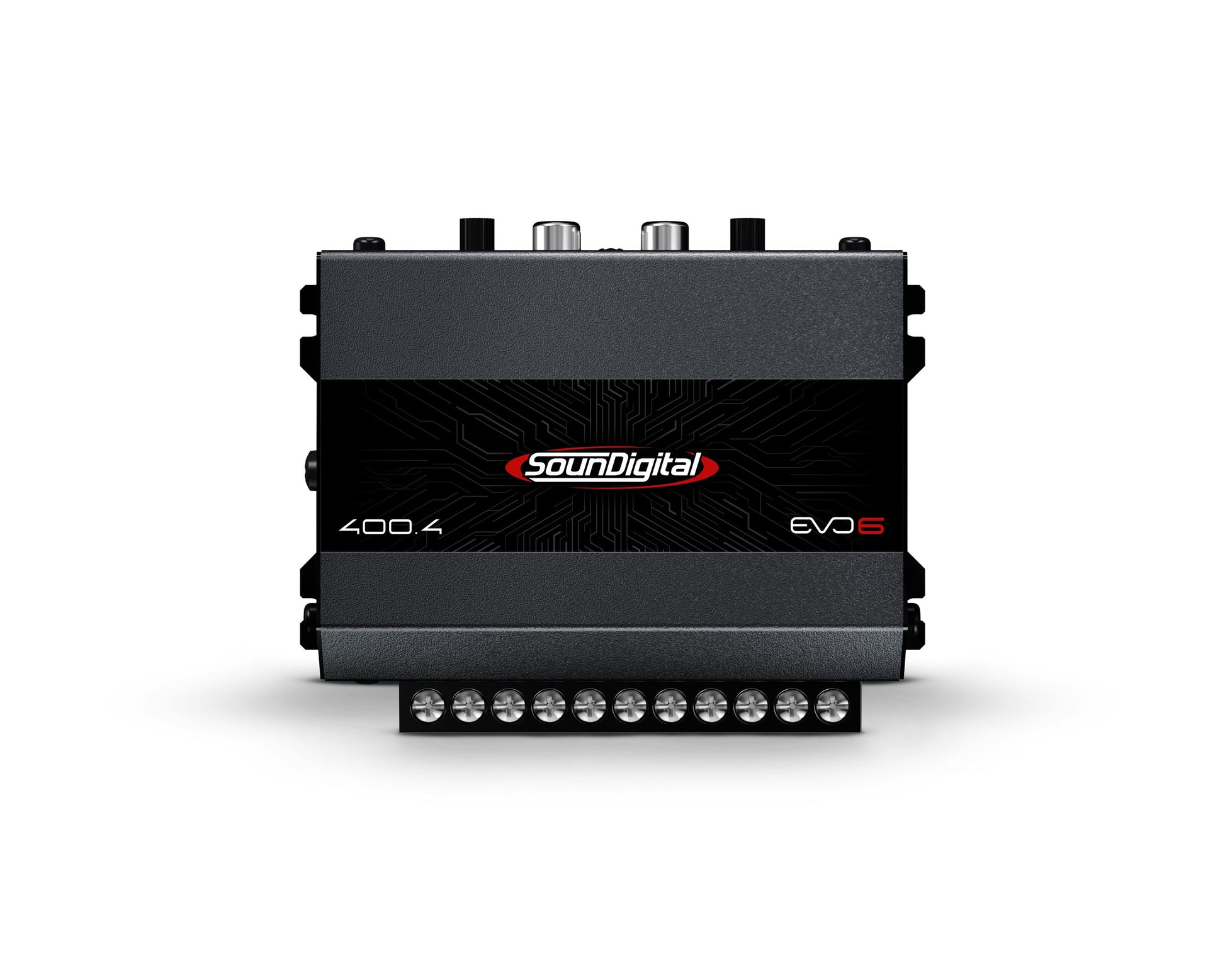

The 400.4 EVO6 is a compact, modern amplifier that delivers 400W RMS of power over 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Product Specifications
Product Specifications
400.2 EVO6 – 4Ω
Power @ 4Ω: 2 x 132 W RMS
Power @ 2Ω: 2 x 200 W RMS
Bridged Power @ 4Ω: 1 x 400 W RMS
Bridged Power @ 2Ω: N/A
Operating Voltage: 9V – 16V
Current Draw (Music): 20 A
Current Draw (Max): 40 A
Recommended Fuse (Music): 25 A
Frequency Response (-3dB): 5Hz – 30kHz
SNR: >100dB
Crossover HPF: 80Hz
Crossover LPF: 80Hz
Input Sensitivity (RCA): 0.2V – 2V
Input Sensitivity (High Level): 2.5V – 25V
Recommended Battery: 40Ah
Power Cable: 6mm² (9AWG)
Speaker Cable: 1.5mm² (15AWG)
Remote Cable: 1.5mm² (15AWG)
Width: 4.2"
Length: 3.4"
Height: 1.8"
Weight: 0.906 lb
