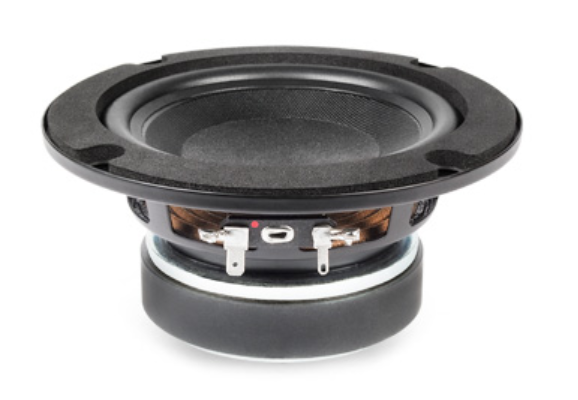

5FE125 - 8Ω

NOMINAL SPECIFICATIONS

Nominal Diameter: 130 mm (5 in)
Overall Diameter: 146.4 mm (5.8 in)
Bolt Circle Diameter: 133 mm (5.24 in)
Baffle Cutout Diameter: 114 mm (4.49 in)
Depth: 72.8 mm (2.86 in)
Flange and Gasket Thickness: 7.8 mm (0.30 in)
Net Weight: 1.1 kg (2.5 lb)


TECHNICAL PARAMETERS

Nominal Impedance: 8 Ohm
Minimum Impedance: 6.2 Ohm
AES Power Handling: 80 W
Maximum Power Handling: 160 W
Sensitivity (1W/1m): 88 dB
Frequency Range: 63÷6300 Hz
Voice Coil Diameter: 32 mm (1.26 in)
Winding Material: Cu
Former Material: Kapton
Winding Depth: 12.5 mm (0.49 in)
Magnetic Gap Depth: 6 mm (0.24 in)
Flux Density: 1 T
Magnet: Ferrite Ring
Basket Material: Steel
Demodulation: Aluminum Ring
Cone Surround: Half Roll
NET Air Volume filled by Loudspeaker: 0.3 dm^3 (0.011 ft^3)
Spider Profile: 1x constant height waves


THIELE AND SMALL PARAMETERS

Fs: 65 Hz
Re: 5.4 Ohm
Qes: 0.51
Qms: 7.4
Qts: 0.48
Vas: 5.4 dm^3 (0.19 ft^3)
Sd: 84 cm^2 (13.07 in^2)
Xmax: 5.25 mm
Xdamage: 9.5 mm
Mms: 11.0 g
Bl: 6.9 N/A
Le: 0.41 mH
Mmd: 10.1 g
Cms: 0.55 mm/N
Rms: 0.6 kg/s
Eta Zero: 0.28%
EBP: 127 Hz
