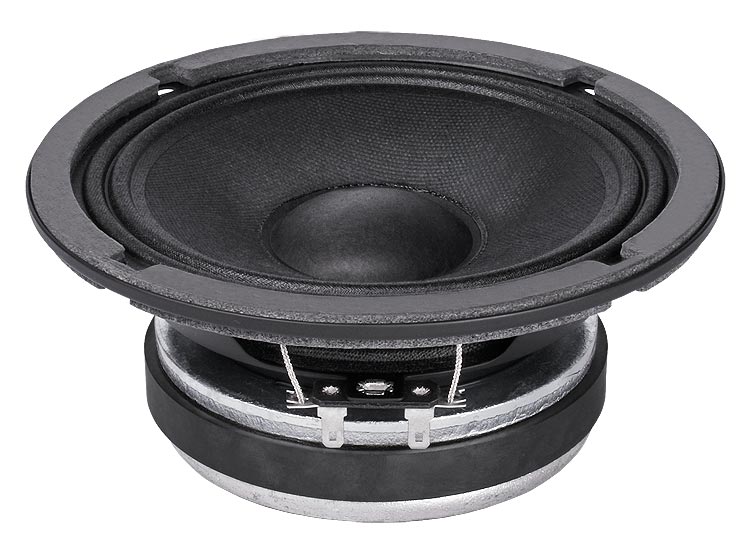

6FE200 - 4Ω

NOMINAL SPECIFICATIONS

Nominal Diameter: 160 mm (6 in)
Overall Diameter: 167.4 mm (6.59 in)
Bolt Circle Diameter: 154 mm (6.06 in)
Baffle Cutout Diameter: 144 mm (5.67 in)
Depth: 77 mm (3.03 in)
Flange and Gasket Thickness: 8 mm (0.31 in)
Net Weight: 2 kg (4.4 lb)
Shipping Box (Single Carton Box): 190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in)
Shipping Weight: 2.2 kg (4.9 lb)


TECHNICAL PARAMETERS

Nominal Impedance: 4 Ohm
Minimum Impedance: 3.6 Ohm
AES Power Handling: 130 W
Maximum Power Handling: 260 W
Sensitivity (1W/1m): 95 dB
Frequency Range: 85÷6000 Hz
Voice Coil Diameter: 37 mm (1.46 in)
Winding Material: Al
Former Material: Kapton
Winding Depth: 11.9 mm (0.47 in)
Magnetic Gap Depth: 8 mm (0.31 in)
Flux Density: 1 T
Magnet: Ferrite Ring
Basket Material: Steel
Demodulation: No
Cone Surround: M-Roll
NET Air Volume filled by Loudspeaker: 0.45 dm^3 (0.016 ft^3)
Spider Profile: 1x constant height waves


THIELE AND SMALL PARAMETERS

Fs: 120 Hz
Re: 3 Ohm
Qes: 0.45
Qms: 6.2
Qts: 0.42
Vas: 4.3 dm^3 (0.15 ft^3)
Sd: 131 cm^2 (20.3 in^2)
Xmax: 4.62 mm
Xdamage: 10.4 mm
Mms: 9.7 g
Bl: 7 N/A
Le: 0.20 mH
Mmd: 8.0 g
Cms: 0.18 mm/N
Rms: 1.2 kg/s
Eta Zero: 1.61%
EBP: 267 Hz
