800.4 EVO6 - 4Ω
800.4 EVO6 - 4Ω

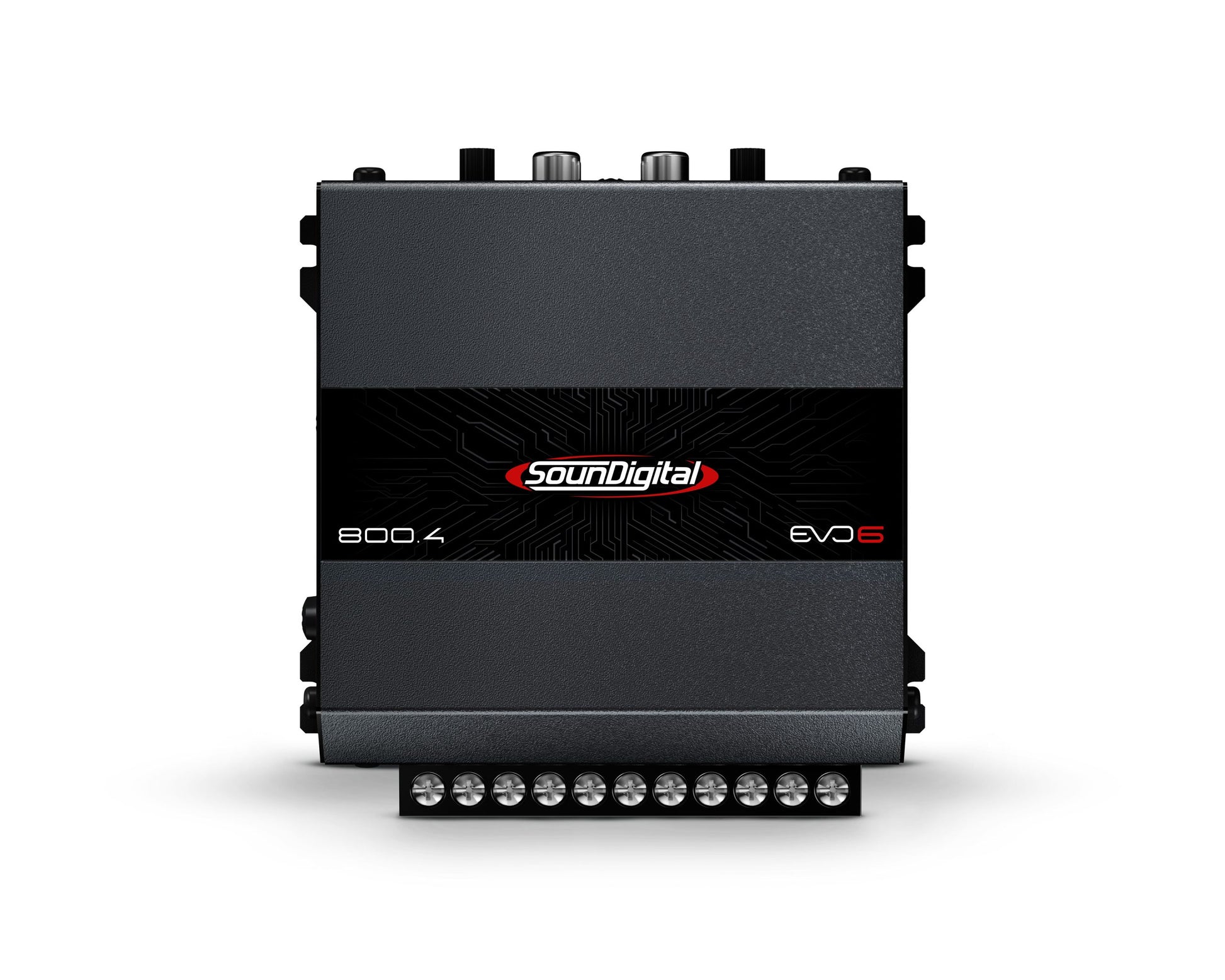

The 800.4 EVO6 is a compact, modern amplifier that delivers 800W RMS of power over 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Product Specifications
Product Specifications
800.4 EVO6 – 4Ω
Power @ 4Ω: 4 x 132 W RMS
Power @ 2Ω: 4 x 200 W RMS
Bridged Power @ 2Ω: 2 x 400 W RMS
Bridged Power @ 4Ω: N/A
Operating Voltage: 9V – 16V
Current Draw (Music): 39 A
Current Draw (Max): 78.7 A
Recommended Fuse (Music): 40 A
Frequency Response (-3dB): 5Hz – 20kHz
SNR: 93dB
Crossover HPF: 80Hz
Crossover LPF: 80Hz
Input Sensitivity (RCA): 0.2V – 2V
Total Efficiency: 80%
Damping Factor (@100Hz): 200
Recommended Battery: 60Ah
Power Cable: 10mm² (7AWG)
Speaker Cable: 2 x 2.5mm² (13AWG)
Width: 4.4" / 11.2 cm
Length: 4.2" / 10.7 cm
Height: 2.0" / 5.2 cm
Weight: 0.609 kg / 1.342 lb
