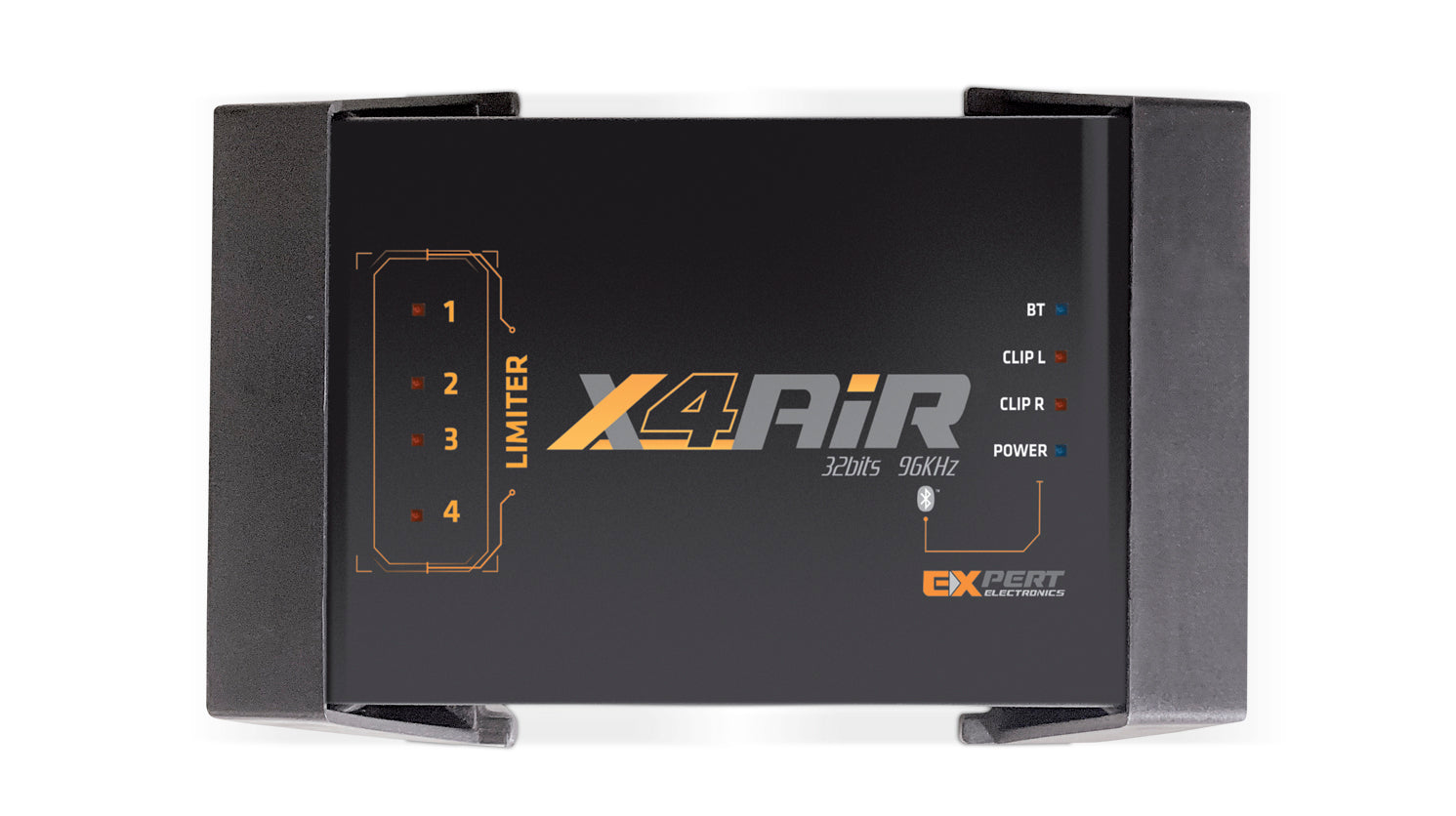

X4 AiR

Features

Impedance: 100,000 ohms
Number of channels: 4
Ways: 4
Type: Active
Color: Black
Model: X-4 AiR


Technical Specifications

General
Brand: Expert Electronics
Model: X-4 AiR
Channels: 4
Bluetooth Interface: Yes (configuration only)
Compatibility: All iOS versions and Android 4.3 or higher

Equalization & Processing
Input Equalizer: 15 bands
Parametric EQ: 1 band per channel
Channel Routing: L / R / L+R
Crossover: Yes
Polarity Inversion: 0° or 180°
Memory Slots: 3 configurable

Inputs & Outputs
Inputs: 2 × RCA
Max Input Level: 4.00 Vrms (+14 dBu)
Input Impedance: 100 kΩ
Output: RCA
Max Output Level: 3.5 Vrms (+13 dBu)
Output Impedance: 100 ohms

Performance
Frequency Response: 10 Hz – 24 kHz (–1 dB)
THD+N: < 0.01%
Signal Latency: < 0.6 ms
Resolution: 32-bit
Sampling Rate: 96 kHz

Power & Dimensions
Power Supply: 10–15 VDC
Maximum Consumption: 300 mA
Dimensions: 4.33 × 5.91 × 1.69 in
Weight: 0.67 lbs
