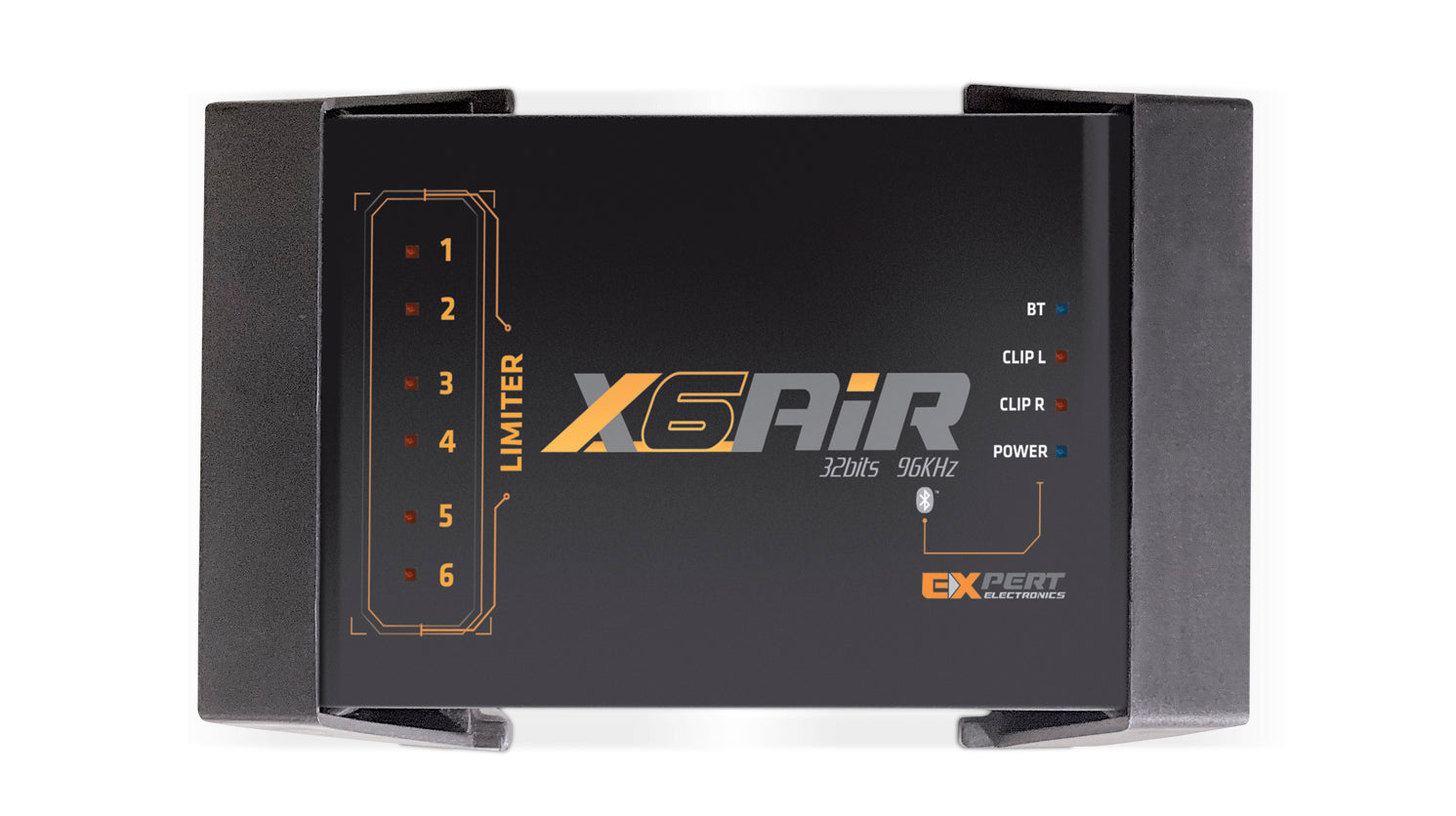

X6 AiR

Technical Specifications

Brand: Expert
Model: X6 AiR
Channels: 6
Channel routing
28-band input equalization
1 parametric equalization band per channel
Functions: Mute, Phase, Limiter, Gain, Delay, Reset
Control via app (available for iOS and Android)
Presets with all saved configurations
Crossover Frequency: 20Hz to 20kHz
Crossover Types: Linkwitz-Riley / Butterworth / Bessel
Attenuation: 6/12/18/24/36/48 dB/8º
EQ IN Bands: 28 Bands
EQ IN Gain: -12 to +12 dB

Inputs (Left/Right)
Number of inputs: 2
Type: Electronically Balanced
Connectors: RCA
Maximum input level: 4.00 Vrms (+14 dBu)
Input impedance: 100 kOhms

Outputs
Number of outputs: 6
Connectors: RCA
Type: Electronically Balanced
Maximum output level: 3.50 Vrms (+13 dBu)
Output impedance: 100 kOhms

Performance
Frequency Response: 10 Hz – 24 kHz (–1 dB)
THD+N: < 0.01%
Signal Latency: < 0.6 ms
Resolution: 32-bit
Sampling Rate: 96 kHz

DSP
Frequency Response: 10Hz to 24kHz (-1dB)
THD+N: <0.01%
Signal latency: <0.6ms
Bit Rate: 32 Bits
Sampling frequency: 96kHz

Power Supply
DC Voltage: 10~15 VDC
Maximum consumption: 300mA

Weight and Dimensions
Dimensions: 5.91 × 4.33 × 1.69 in
Weight: 0.67 lbs

Package Contents
01 Processor
User Manual
