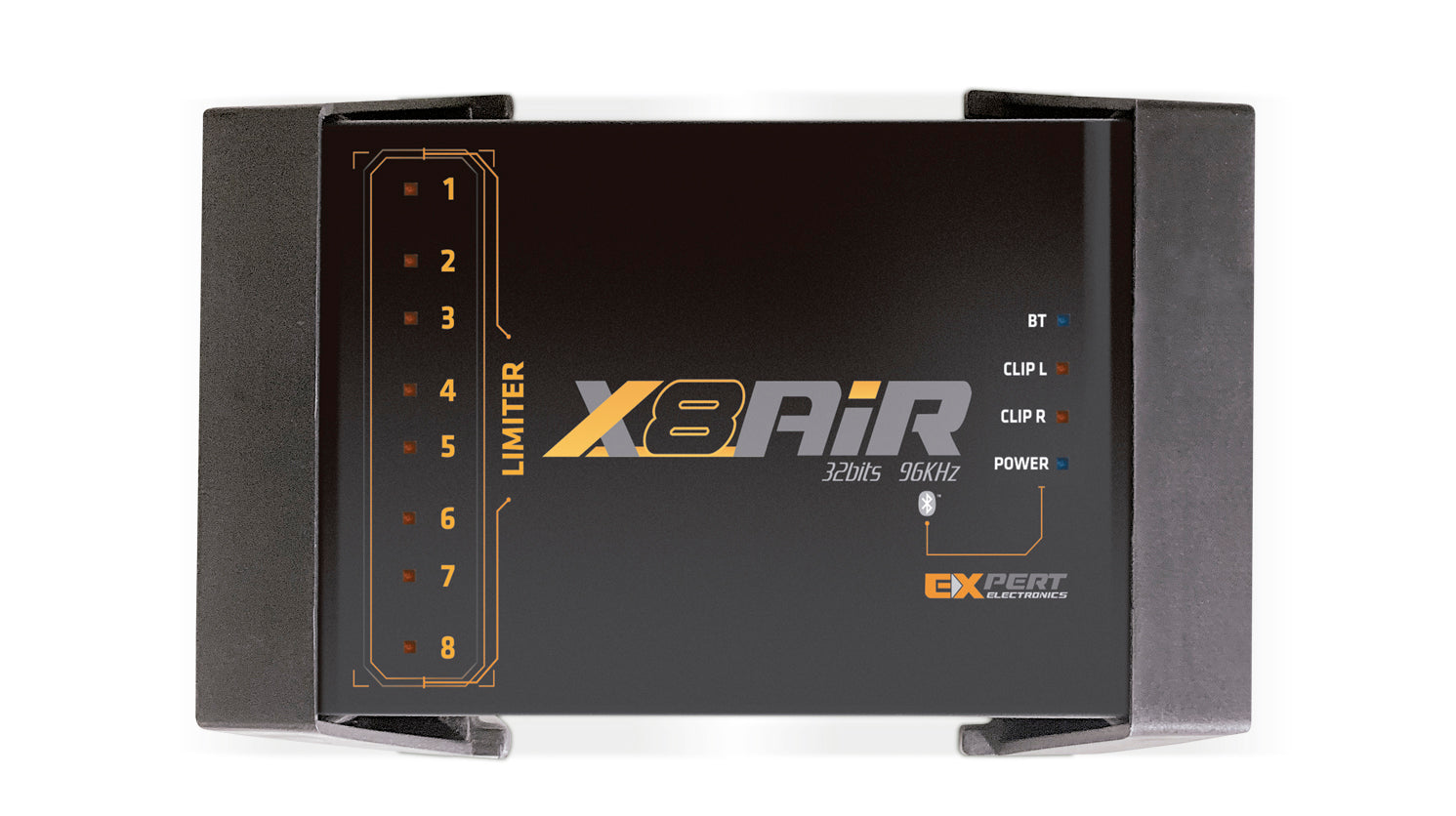

X8 AiR

Crossover
Frequency Range: 20Hz – 20kHz
Filter Types: Linkwitz-Riley / Butterworth / Bessel
Attenuation Options: 6 / 12 / 18 / 24 / 36 / 48 dB / 8º
EQ Input Bands: 15
EQ Input Gain: –12 to +12 dB

Inputs (L/R)
Number of Inputs: 4
Type: Electronically Balanced
Connectors: RCA
Maximum Input Level: 4.00 Vrms (+14 dBu)
Input Impedance: 100 kΩ

Outputs
Number of Outputs: 8
Connectors: RCA
Type: Electronically Balanced
Maximum Output Level: 3.50 Vrms (+13 dBu)
Output Impedance: 100 kΩ

DSP
Frequency Response: 10Hz – 24kHz (–1 dB)
THD+N: < 0.01%
Signal Latency: < 0.6 ms
Bit Depth: 32-bit
Sampling Rate: 96 kHz

Power Supply
Voltage: 10–15 VDC
Maximum Consumption: 300 mA

Dimensions: 1.69 x 5.91 x 4.33 in
Weight: 0.67 lbs

Compatibility
Compatible with iOS 13+ and Android 7+
App available on Google Play and the Apple App Store
